Quick Start

General workflow overview for SimSolid Cloud.

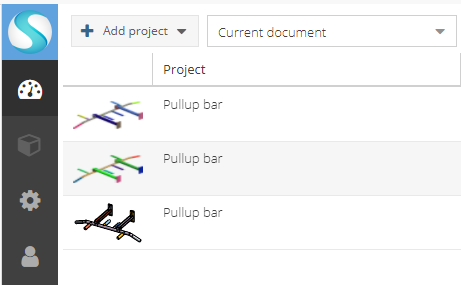

  1. From the Altair One Marketplace, launch SimSolid Cloud, select Add project, and load the design geometry.


    Figure 1.

    See Open Project for more information.

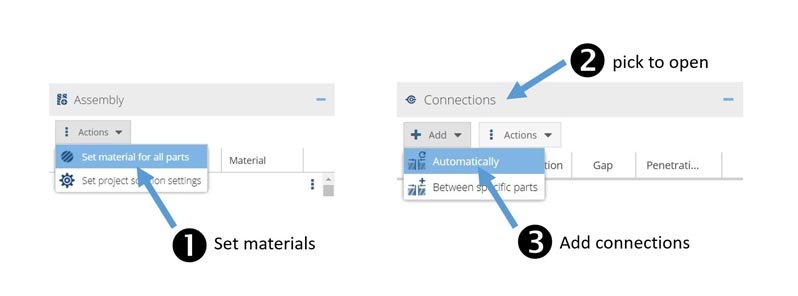

  2. Create material properties and part connections.


    Figure 2.

    See Assign Material Properties and Connections for more information.

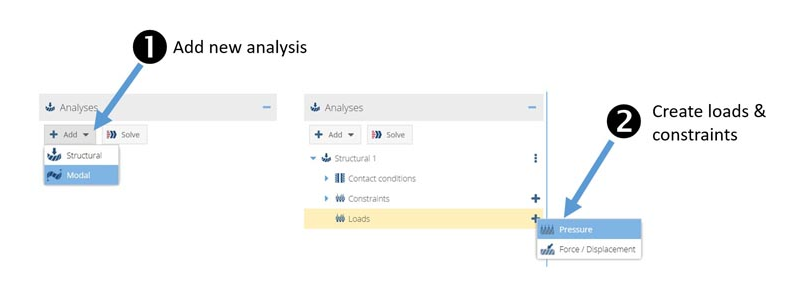

  3. Define analysis, contact conditions, constraints, and loads.


    Figure 3.

    See Add Analysis for more information.

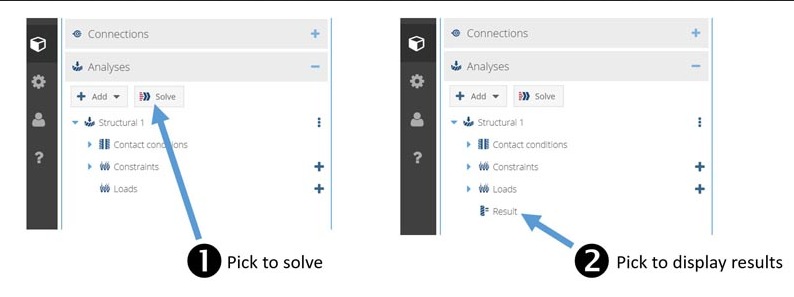

  4. Run analysis and examine your results.


    Figure 4.

    See Run Analysis and Review Results for more information.
