Tutorial: Low Pressure Die Casting

Learn how to simulate a stalk and set up a pressure curve for a low pressure die casting simulation.

Model file is available in the tutorial_models folder in the installation directory in Program Files\Altair\2021\InspireCast2021\tutorial_models\lowpressure.x_b.

Import Geometry

  1. Launch Inspire Cast.
  2. Click Open Model on the Files icon and browse to the tutorial model file in the installation directory, or drag-and-drop the file into the modeling window.


  3. Use the mouse and view controls to position the model.

Designate a Casting Part

Select casting geometries with the Cast Part tool.
Important: A cast part must be defined before performing any other operation.
  1. On the Cast Part icon, click Designate Casting Part.
  2. Left-click to select which candidate is a cast part.
    Parts are automatically detected and highlighted based on your cursor position. Since there is a single geometry the entire cast part will be automatically highlighted.
    The selected part is highlighted red.

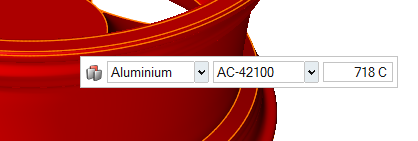

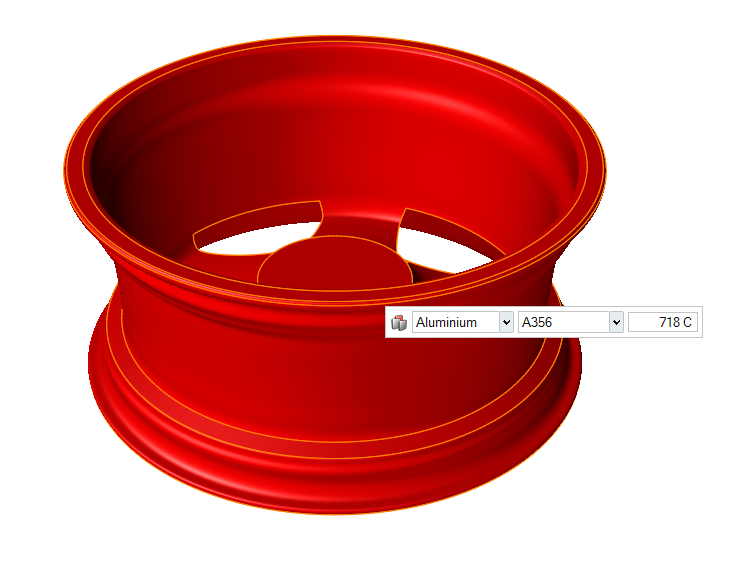

  3. In the microdialog, select Aluminum as the material and the first alloy, AC-42100, for the part.
  4. Right-click and mouse through the check mark to exit, or double-right-click.

Set Gravity Direction

  1. On the Cast Part tool, click Set Gravity Direction.

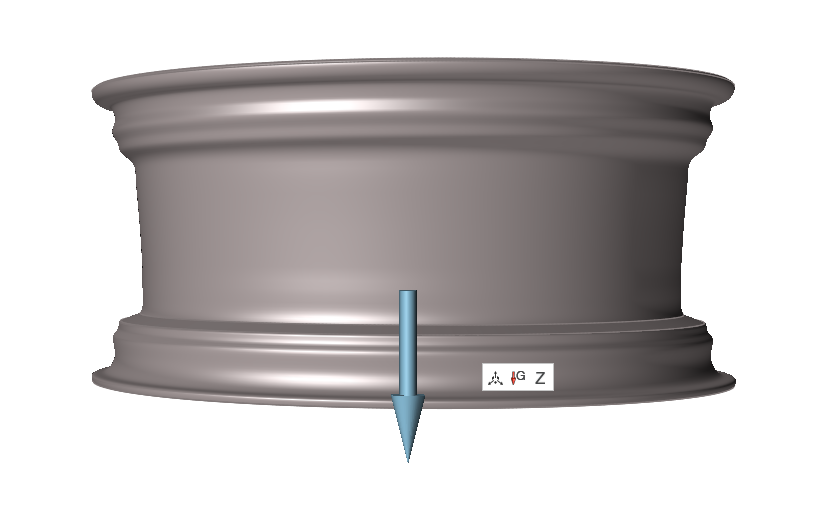

  2. Confirm that the part is correctly aligned with gravity.


  3. Right-click and mouse through the check mark to exit, or double-right-click.

Add a Mold

  1. Click the Components tool.

    Click the Add/Edit Mold tool in the secondary tool group.

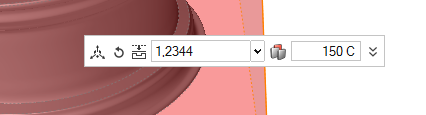

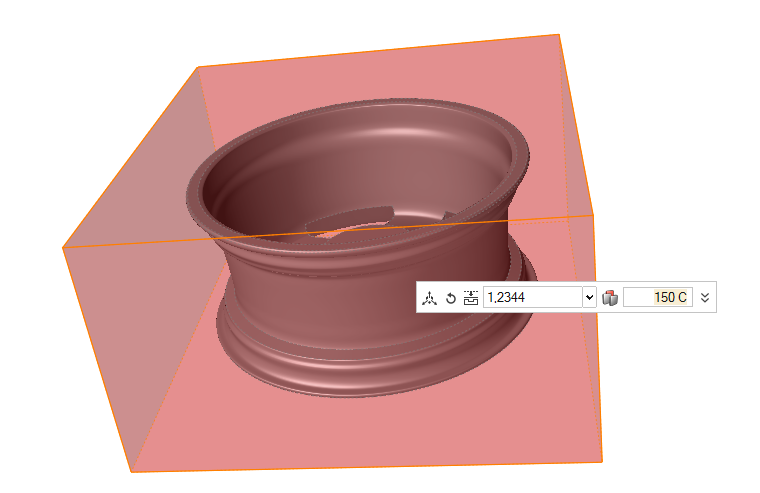

  2. Select 12344 and enter 150 C.


  3. Right-click and mouse through the check mark to exit, or double-right-click.

Designate the Gate

  1. On the the Gate icon, click Designate Surfaces as Gates.

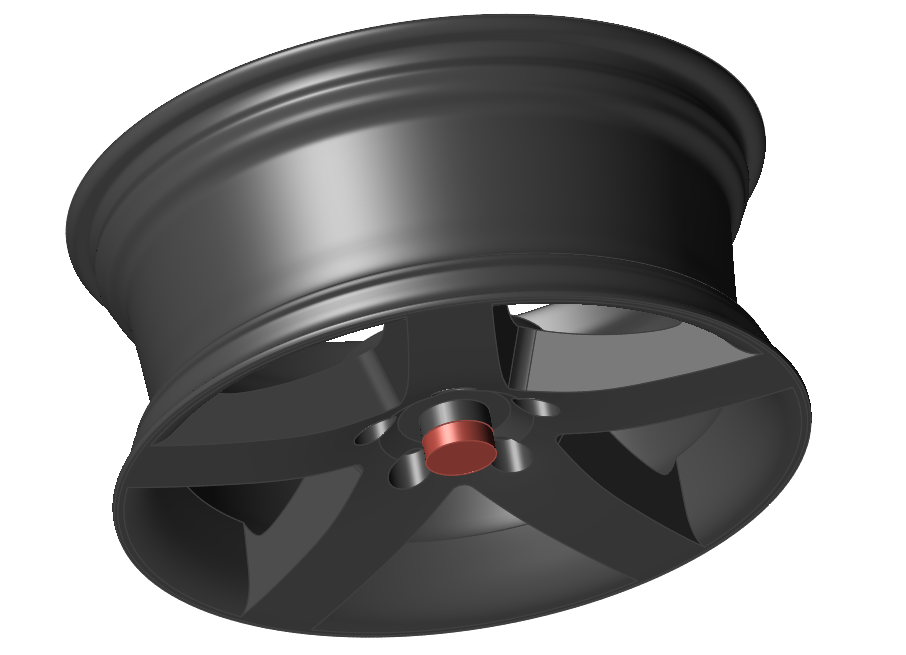

  2. Click the bottom surface to create a gate where a stalk will be simulated.


Define Process Parameters

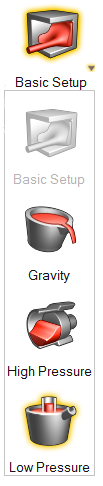

  1. Click to select the Low Pressure icon.
  2. Enter a distance for the stalk, and plot the values on the pressure curve.


    Note:
    • For the initial pressure, consider only the stalk length for the height. For the final pressure, use the stalk length plus the height of the part.




    • The final time value is slightly greater than the expected filling time.

Run Analysis

  1. On the Analysis icon, click Run Analysis.

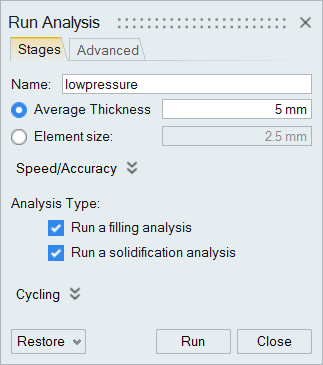

  2. Enter an Average Thickness of 5mm.
  3. Select Run a filling analysis and Run a solidification analysis.
  4. Click Run.
    Note: Once the simulation calculation is finished, the green flag will appear on the analyze icon.

    Note: The user can also select the results by clicking View Now under Run History.


Analyze Results

  1. Click Filling under Stage.
  2. Click Temperature under Result Types.

  3. Click Play to start the animation.

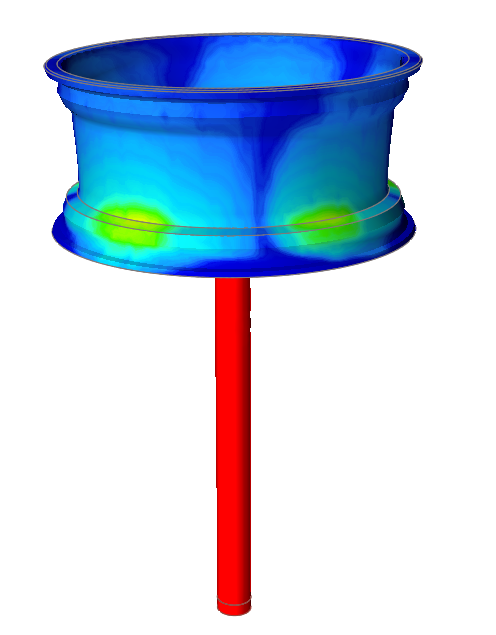

    We can see how fluid is rising from the stalk to reach the wheel rim. This is the real simulation of the fluid inside the machine.



  4. Click Solid Fraction under Result Types.
  5. Click Play to start the animation.

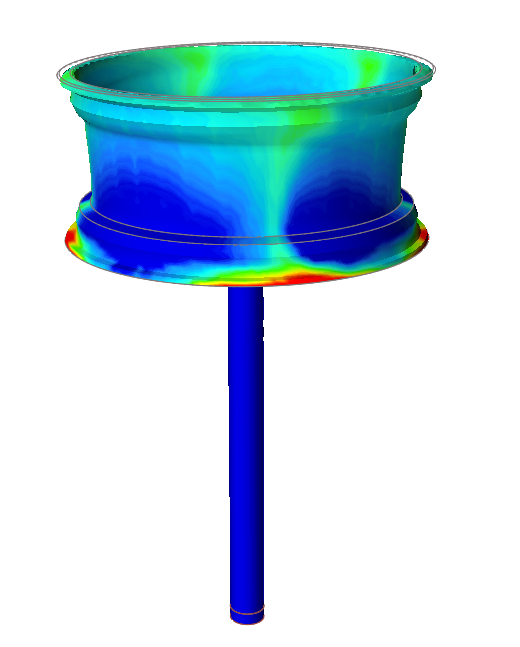

    Solid Fraction results allow you to determine if there will be any solid areas during filling. A value of 0 corresponds to a completely liquid material, while a value of 1 corresponds to a completely solid material.

    This result shows that there are no solidified regions inside.



  6. Click Velocity under Result Types.
  7. Click Play to start the animation.

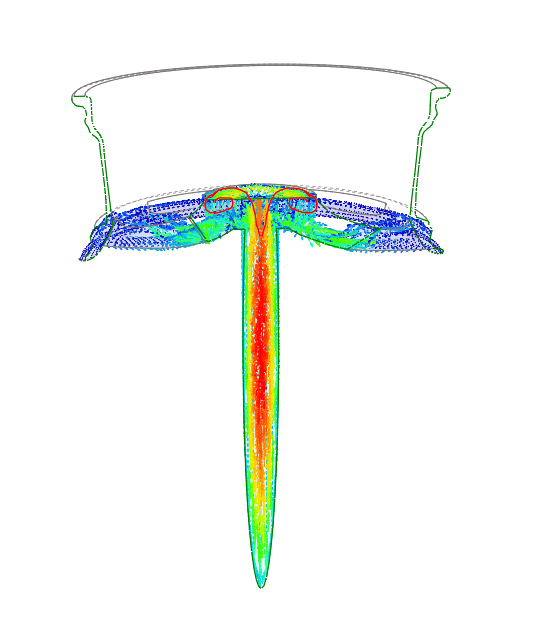

    We can observe turbulence at the union between the wheel and the stalk due to the high velocity (around 7 m/s). Based on this result, coupled with the knowledge that there are no problems of early solidification during filling, we could decide to decrease the pressure to fill the wheel more slowly and avoid this turbulence.



  8. Click Last Air under Result Types.

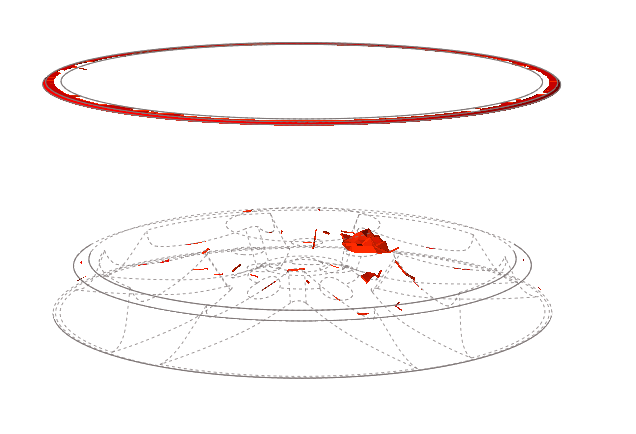

    We can see here that most of the air inside the mold is being trapped at the top surface. There is a partition line there so the air will escape, but a flash defect will probably form in the region.



  9. Click Cold Shuts under Result Types.
  10. Click Play to start the animation.

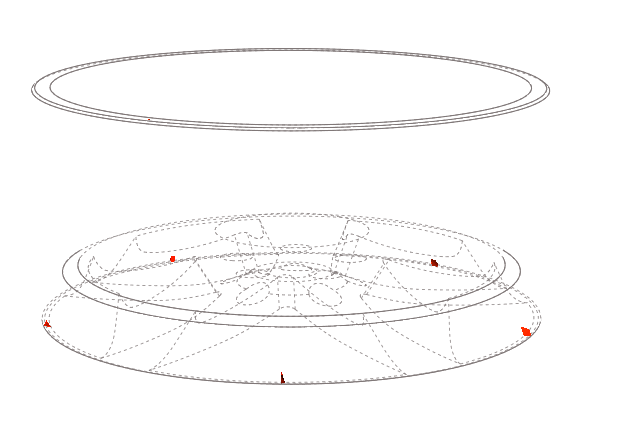

    This result is showing the temperature difference between the average of two fronts and the initial temperature (inlet temperature).
