Demonstrates topology optimization of a V-bracket with RADOPT technique, using OptiStruct. RADOPT is Radioss optimization
using OptiStruct. The equivalent static load method (ESLM) is used
to perform the optimization run here.
Model Description
Conduct a topology optimization of the V-bracket which is undergoing a compression loading
(force applied in negative Y-direction), and the design space (yellow) in Figure 1.
FE Model
Elements Types
HEXA
RBE2
The linear material properties are:
MAT1
Young’s Modulus
2.1E5 MPA
Poisson's Ratio
0.3
Density
7.9E-9
Results

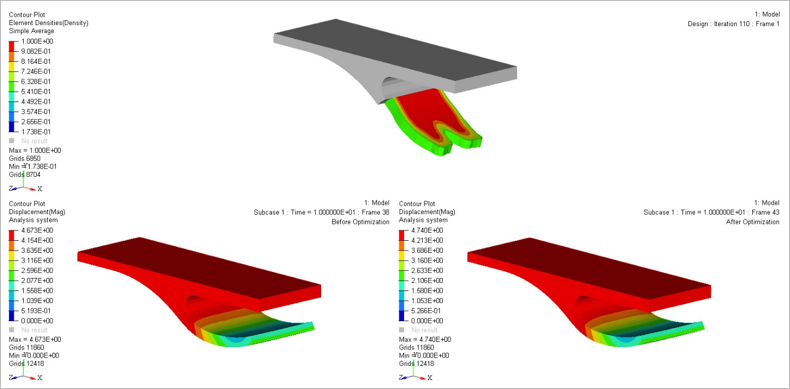

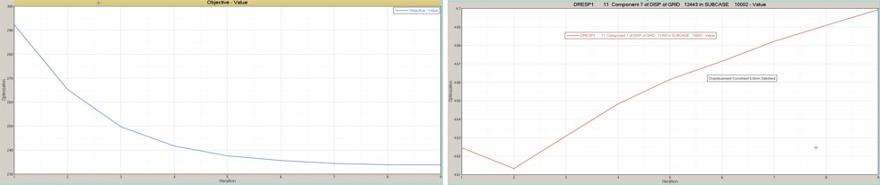

Based upon these findings, a topology optimization, the Design Objective
and Design Constraint satisfied (Figure 2) and also design
change on the V-bracket in Figure 3 are found.
