Mux
Given n vector valued inputs, this block merges inputs into a single output vector.
Library
Routing
Description
The Mux block merges given number of inputs into a single output vector. The number of inputs can be set by "Number Of Inputs" parameter. The input signal is required to be column vector. For each input vector, its dimension is configured in the table "Input Port Sizes", the value in ith table entry corresponds to the ith input signal. For example if the first input signal is 3x1 column vector, the first entry in "Input Port Sizes" should be set to 3. It's possible to specify port sizes using negative values, which indicates the input signal dimension is determined by diagram compiler automatically. For example the "Input Port Sizes" are -1, -2, the two input signals can be of any different sizes. If the "Input Port Sizes" are -1, -1, the two input signals must have the same size.

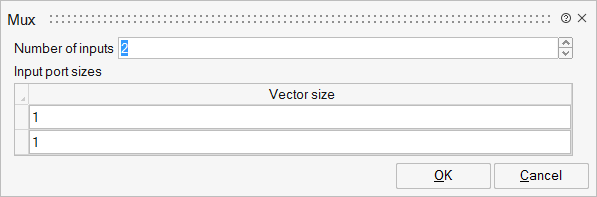

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
nin | Number of inputs | Specify the number of input signals to be merged into an output vector. | Number | |
inports | Input port sizes | Specify the dimension of each input signal. | Structure | |
inports/size | Vector size | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | input | nin | |
Port 2 | explicit | output | 1 |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | |
direct-feedthrough | yes | |
zero-crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
