BusExtractor
This block extracts signals from a bus.
Library
BusOperations
Description
The BusExtractor block is used to extract signals from a bus by signal names.
"Number Of Extracted Signals" parameter prescribes how many signals to be extracted. The signal name follows the naming convention:
InnerBus1.InnerBus2.<...>.SignalName
It is possible that the incoming bus contains inner buses, which carries other inner buses and signals. So in order to locate the desired signal in for the incoming bus, you need to provide the full path to the signal with the bus hierarchy.
For example, the signal names could be "Signal1", "Bus1.Signal1", "Bus2.Bus1.Signal1"

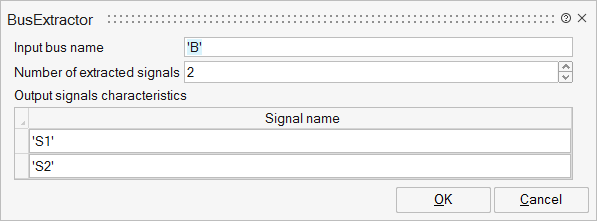

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
busname | Input bus name | String | ||
nout | Number of extracted signals | Specify how many signals to be extracted from the bus. | Number | |
outports | Output signals characteristics | Structure | ||
outports/Signals | Signal name | The block extracts the signal from the bus with the name that indicates the element in the bus. | Cell of strings |
