GetBusSignal

This block connects bus ports from a block to another without connecting them physically. It is used with a SetBusSignal block. A simple SetBusSignal block can send data to multiple GetBusSignal, although a GetBusSignal can receive data from only one SetBusSignal. SetBusSignal transports its input data to its corresponding GetBusSignal block.

    GetBusSignal

Library

BusOperations

Description

The GetBusSignal block connects bus ports from one block to another without connecting them physically. It is used with a SetBusSignal block. A simple SetBusSignal block can send data to multiple GetBusSignal blocks, although a GetBusSignal can receive data from only one SetBusSignal. SetBusSignal transports its input data to its corresponding GetBusSignal block.

For more information, please refer to the GetSignal block.

Parameters

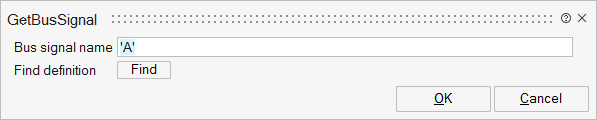

GetBusSignal_0

NameLabelDescriptionData TypeValid Values

tag

Bus signal name

String

Ports

NameTypeDescriptionIO TypeNumber

Port 1

bus

output

1
