ImageDisplay
This block displays an active icon image.
Library
SignalViewers
Description
This block provides an active icon image. The choice of the image depends on a signal. User must provide a table containing the name of the image files. The image file is looked up in the specified folder. The folder path may be absolute or relative with respect to the folder containing the model file. When the signal to choose the image is activated, its value is used as index of the table containing image filenames.

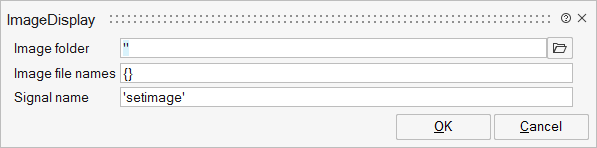

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
folder | Image folder | Folder containing the images to display. | String | |
imagetable | Image file names | Table containing image file names. The table uses the signal value as index. | ||
label | Signal name | Name of the signal that is passed to the table to select an image. Define a corresponding SetSignal block with global or scoped scoping. When the signal is activated, its value is used as the index for the image table. | String |
Diagram
