Display
This is a display block
Library
SignalViewers
Description
This block displays the current value of the input signal in given C string format, and updated at specified intervals in real time seconds.

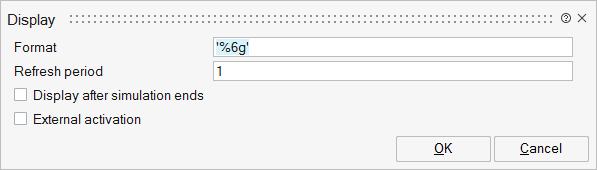

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
fmt | Format | A valid C style format. | ||
dt | Refresh period | The rate at which the displayed value is updated. It is measured in seconds. | Scalar | |
showatend | Display after simulation ends | Display the value at the end of the the simulation instead of progressively during the simulation. | Number | 0 |
externalActivation | External activation | Number | 0 |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | input | 1 | |
Port 2 | activation | input | externalActivation |
