Trapezoid
This block generates a trapezoidal signal emulating the MSL Modelica block:
Modelica.Blocks.Sources.Trapezoid
Library
SignalGenerators

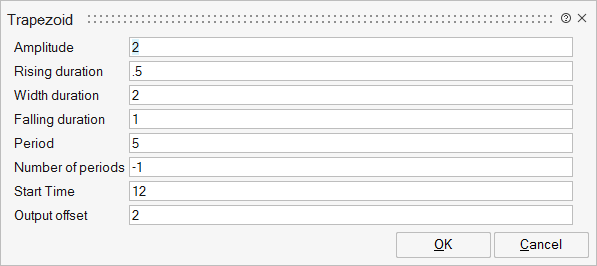

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
amplitude | Amplitude | Amplitude of trapezoid | Scalar | |
rising | Rising duration | Rising duration of trapezoid | Scalar | |
width | Width duration | Width duration of trapezoid | Scalar | |
falling | Falling duration | Falling duration of trapezoid | Scalar | |
period | Period | Time for one period | Scalar | |
nperiod | Number of periods | Number of periods (use a negative value for unlimited) | Scalar | |
startTime | Start Time | Trapezoid start time | Scalar | |
offset | Output offset | Initial offset of the output | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | 1 |
Diagram
