Step Generator
This block generates a step signal.
Library
SignalGenerators
Description
This block generates a step signal.
The output signal remains at its Initial value (a parameter) until simulation time reaches the Step time value. Then, the output jumps and stays to the Final value (a parameter).

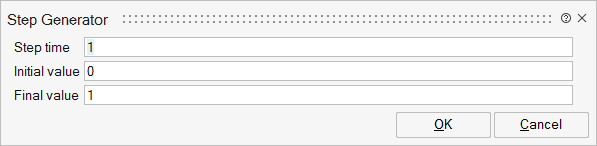

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
steptime | Step time | The time, in seconds, when the output jumps from the Initial value parameter to the Final value parameter. | Matrix | |
iniv | Initial value | The block output until the simulation time reaches the Step time parameter. | Matrix | |
finv | Final value | The block output after the simulation time reaches the Final time parameter. | Matrix |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | 1 |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | Time Dependency = standard mode actiavted |
direct-feedthrough | no | |
zero-crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
