EventGenerate
Several events are programmed at specified time instants.
Library
ActivationOperations
Description
This block generates one or multiple events at specified time instants.
ActivationOperations are only generated for positive time instants. Negative instants are ignored.

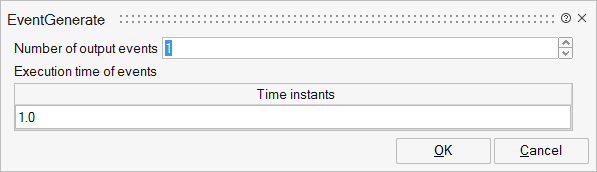

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
nevout | Number of output events | Real scalar value. Defines the number of events to be generated by the block. Default is 1. | Number | |
etimes | Execution time of events | List of events to be generated. | Structure | |
etimes/time | Time instants | Time instants of the events to be generated by the blocks. Real scalar value. | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | activation | output | nevout |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | |
direct-feedthrough | no | |
zero-crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
