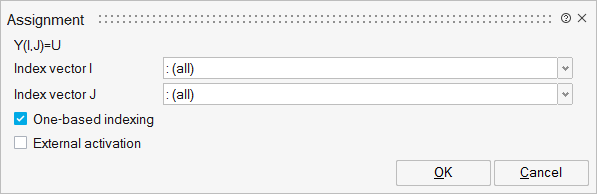

Assignment

assignx

Index vector I

Index selection method for the first dimension .

Structure

assignx/x_selectall

: (all)

Select all rows.

Number

0
1

assignx/x_vectorindex

Defined as parameter

Select rows by specified indices.

Number

0
1

assignx/x_startingindex

i=I(1) defined as parameter

Select rows by specified starting index.

Number

0
1

assignx/x_startingindexdecreasing

i=I(1) defined as parameter (decreasing)

Select rows by specified endinging index.

Number

0
1

assignx/x_vectorindexport

Defined by input

Select rows by the indices provided externally

Number

0
1

assignx/x_startingindexport

i=I(1) defined by input

Select rows from starting index provided externally.

Number

0
1

assignx/x_startingindexportdecreasing

i=I(1) defined by input (decreasing)

Select rows from ending index provided externally.

Number

0
1

x_vector_index

Index parameter

Structure

x_vector_index/x_vi

Index vector I parameter

Cell of vectors

x_starting_index

Index parameter

Structure

x_starting_index/x_si

i=I(1) parameter

The indices of selected rows.

Cell of vectors of size 1

x_starting_indexdecreasing

Index parameter

Structure

x_starting_indexdecreasing/x_si

i=I(1) parameter

The index of starting row.

Cell of vectors of size 1

assigny

Index vector J

Structure

assigny/y_selectall

: (all)

Select all columns.

Number

0
1

assigny/y_vectorindex

Defined as parameter

Select columns by specified indices.

Number

0
1

assigny/y_startingindex

j=J(1) defined as parameter

Select columns by specified starting index.

Number

0
1

assigny/y_startingindexdecreasing

j=J(1) defined as parameter (decreasing)

Select columns by specified ending index.

Number

0
1

assigny/y_vectorindexport

Defined by input

Select columns by the indices provided externally.

Number

0
1

assigny/y_startingindexport

j=J(1) defined by input

Select columns from starting index provided externally.

Number

0
1

assigny/y_startingindexportdecreasing

j=J(1) defined by input (decreasing)

Select columns from ending index provided externally.

Number

0
1

y_vector_index

Index parameter

Structure

y_vector_index/y_vi

Index vector J parameter

The indices of selected columns.

Cell of vectors

y_starting_index

Index parameter

Structure

y_starting_index/y_si

j=J(1) parameter

The index of starting column.

Cell of vectors of size 1

y_starting_index_portdecreasing

Index parameter

Structure

y_starting_index_portdecreasing/y_si

j=J(1) parameter

Cell of vectors of size 1

onebased

One-based indexing

To index a matrix, start from one when checked, start from zero when unchecked.

Number

0
1

externalActivation

External activation

Specifies whether the block receives an external activation or inherits its activation through its regular input ports. When External Activation is selected, an additional activation port is added to the block. By default, external activation is not selected.

Number

0
1
