Power
This block implements the to-the-power-of operation. The parameter of the block gives to the parameter, a, the-power-of a, which is applied to every entry of the input to produce the corresponding output.
Library
MathOperations
Description
The Power block implements the to-the-power-of operation. The parameter of the block gives to the parameter, a, the power of a, which is applied to every entry of the input to produce the corresponding output.
Inputs can be either real or complex.
Inputs are either scalar, or vector or matrix.

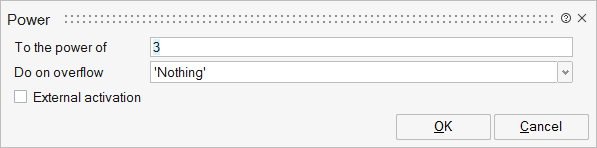

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
power | To the power of | Matrix | ||
ptype | Do on overflow | String | 'Nothing' | |
externalActivation | External activation | Number | 0 |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | input | 1 | |
Port 2 | explicit | output | 1 | |
Port 3 | activation | input | externalActivation |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | |
direct-feedthrough | yes | |
zero-crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
