Negate
This block implements the unary minus operation.
Library
MathOperations
Description
This block implements the unary minus operation.

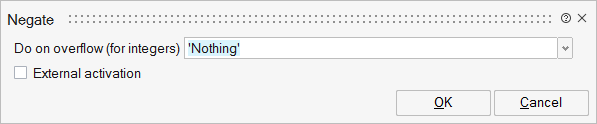

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
overflow | Do on overflow (for integers) | This parameter defines the way overflow shoudl behandled for integer datatype. | String | 'Nothing' |
externalActivation | External activation | The same number of activation inputs as regular inputs are added to the block when selected. The external activation determines which input to be copied to the output. Default is OFF. | Number | 0 |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | 1 | |
Port 2 | explicit | input | 1 | |
Port 3 | activation | input | externalActivation |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | no | |
direct-feedthrough | yes | |
zero-crossing | no | |
mode | no | |
continuous-time state | no | |
discrete-time state | no |
