ContTransFunc_SS
This block implements a SIMO (continuous-time, single-input, multi-output) linear system that is defined by the linear system's transfer function. The transfer function, specified by the coefficients of the function's numerator and denominator, must be proper, meaning that the degree of the numerator must not exceed that of the denominator. The initial state is computed such that the system is initially in steady-state.
Library
AdvancedDynamical
Description
This block implements a SIMO (continuous-time, single-input, multi-output) linear system that is defined by the linear system's transfer function. The transfer function, specified by the coefficients of the function's numerator and denominator, must be proper, meaning that the degree of the numerator must not exceed that of the denominator. The initial state is computed such that the system is initially in steady-state.

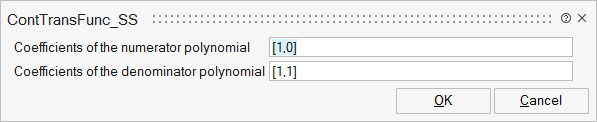

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
num | Coefficients of the numerator polynomial | A mxn matrix, m is the number of output, n is the order of the numerator polynomial. This must be a polynomial in s domain. | Matrix | |
den | Coefficients of the denominator polynomial | Defines the denominator of the transfer function. | Vector |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | explicit | output | 1 | |
Port 2 | explicit | input | 1 |
Advanced Properties
| Name | Value | Description |
|---|---|---|
always active | yes | |
direct-feedthrough | no | no, unless the order of numerator is equal to the order of denominator. |
zero-crossing | no | |
mode | no | |
continuous-time state | yes | |
discrete-time state | no |
