IncludeDiagram

This block provides a generic interface for including diagrams from other Activate models. It gives the possibility to choose between several diagrams.

IncludeDiagram

Library

CustomBlocks

Description

This block provides a generic interface for including diagrams from other Activate models. The other model is designated either by its absolute path or relative path. The relative path is with respect to the path of the current model (so the current model must have been saved previously in this case). The diagram within the external model is designated by its path in the model. For example for the top diagram, the path is empty and so the corresponding parameter should be entered as an OML empty string. The included diagram is included in the current model at compile time so changes made to the included diagram are taken into account at each simulation run.
This block allows the definition of a context which is applied to the included diagram as an external context.
Note that the properties of the Super Block containing the included diagram, such as masking properties, are not relevent to this operation.

Parameters

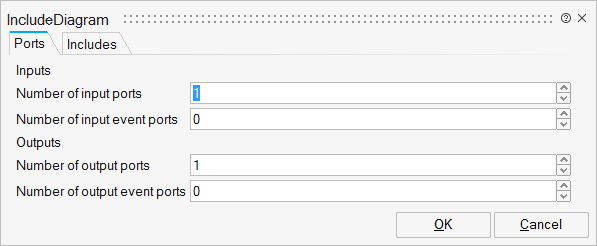

IncludeDiagram_0

Name	Label	Description	Data Type
nin	Number of input ports	Defines the number of input ports of the block. This must match the number of input port blocks inside the included diagram.	Number
nevin	Number of input event ports	Defines the number of activation input ports of the block. This must match the number of activation input port blocks inside the included diagram.	Number
nout	Number of output ports	Defines the number of output ports of the block. This must match the number of output port blocks inside the included diagram.	Number
nevout	Number of output event ports	Defines the number of output activation ports of the block. This must match the number of output activation port blocks inside the included diagram.	Number

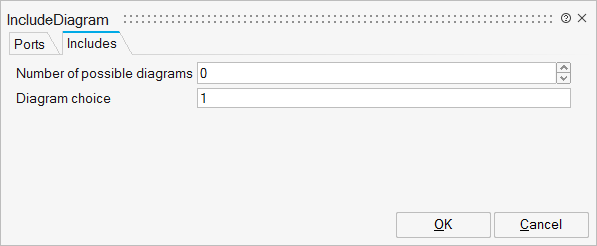

IncludeDiagram_1

Name	Label	Description	Data Type
ndiagrams	Number of possible diagrams	More than one diagrams may be specified to be included. This parameters specifies the number of specified diagrams.	Number
choice	Diagram choice	It specifies which diagram to include if more than one diagram is specified.	Scalar
work	Workspace
includes	Include Diagrams		Structure
includes/path	Model path	This parameter can be: - an absolute or relative path to the external model containing the included diagram. - an empty string ('') to designate the current simulated model. This is the default behavior. - a '.' to designate the model that contains the IncludeDiagram block.	Cell of strings
includes/dpath	Diagram path	The diagram path within the external model.	Cell of strings
includes/context	Context	An OML script used as external context to the included diagram.	Cell of strings

Ports

Name	Type	IO Type	Number
Port 1	explicit	output	nout
Port 2	explicit	input	nin
Port 3	activation	input	nevin
Port 4	activation	output	nevout
