BusAssignment
This block is used to assign signals in a bus.
Library
BusOperations

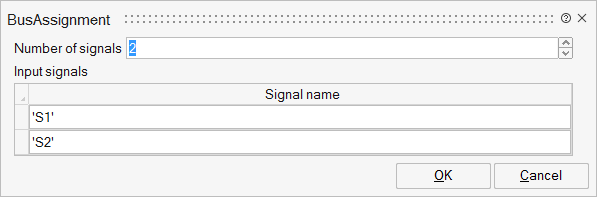

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
nin | Number of signals | Number | ||
reg_ports | Input signals | Structure | ||
reg_ports/sign | Signal name | Cell of strings |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Bus | bus | input | 1 | |
Port 2 | explicit | input | nin | |
Bus | bus | output | 1 |
