SimulatorInfo

This block provides information from the simulator.

    SimulatorInfo

Library

ActivationOperations

Description

The SimulatorInfo block provides advanced information from the simulator. Four options can be selected to output simulator status information.

Parameters

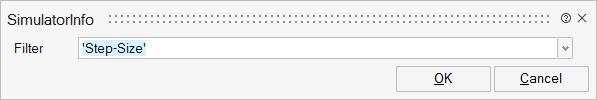

SimulatorInfo_0

NameLabelDescriptionData TypeValid Values

filter

Filter

step-size: provides the last accepted step-size in the simulator.
hot-restart: if the solver is [re]started, the solver memory is cleared.
phase: the phase in which the blocks in the model are called.
effective-time-tolerance: the actual value of the Time-Tolerance simulation parameter used by the simulator if the parameter is set to AUTO.

String

'Step-Size'
'Hot-Restart'
'Phase'
'Effective-Time-Tolerance'
'Initial-time'
'Final-time'
'Zero-crossings'
'Mesh-points'
'CPU
time/step'

Ports

NameTypeDescriptionIO TypeNumber

Port 1

explicit

output

1
