Job Profiling

When job profiling is activated, Accelerator Plus tracks memory usage, CPU usage and license usage over the lifetime of a job.

The output of job profiling is a set of plots as shown below:

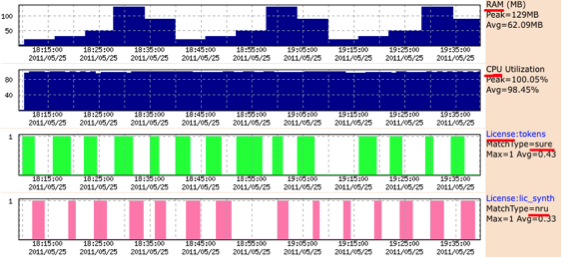

Figure 1.

The first plot from the top shows the RAM usage over time. The second plot shows CPU usage over time. The third plot shows usage for licenses that were requested at submission time. The fourth plot show usage of a license that was not requested ("Requested/Used")

To activate profiling on a single job, use the option -profile of wx run as shown below:
% wx run -profile myJob

To view a profile, use the browser interface and visit the specific page for the job.

To activate job profiling for a jobclass, set the following:
# In a job class definition
set VOV_JOB_DESC(profile) 1
To activate job profiling for all jobs, use the file $VOVDIR/local/vncrun.config.tcl and add a line like this:
# In the file $VOVDIR/local/vncrun.config.tcl
set VOV_JOB_DESC(profile) 1
