nc gui

Show a grid view of the jobs in a specified set.


vnc: Usage Message

  NC GUI:
          Show a grid view of the jobs in a specified set.
  USAGE:
          % nc gui [OPTIONS] &
  OPTIONS:
          With no options, the GUI shows all jobs of the current
          user.

          -all
          -a                  -- Show all jobs.
          -u <user>           -- Show jobs for specified user.
          -s <SETNAME>
          -set <SETNAME>
          -setname <SETNAME>  -- Show specified set.
          -timeout <TIMESPEC> -- Stop async update after this time (default 2h).

          -ss                 -- Use subserver, if available.
          -noss               -- Do not user subserver, even if available. (Default)
          -submit             -- Activate job submission dialog
          -limitGui <N>       -- Override the limit of 3 max GUI per user.

          -batch <file>       -- Execute specified file after the GUI is ready

          -metrics            -- Show scheduler metrics.
          -metricsConfig <file> -- Use specified metrics configuration file.
          -slaves             -- Show compact slaves monitor.
          -taskers            -- Show compact taskers monitor.
          -fontsize <size>    -- Specify the normal font size. Default is 10.
                                 Legal range is 3 to 36.

          -title <title>      -- Choose title of X11 window.

  EXAMPLES:
          % nc gui &                  -- Show all my jobs
          % nc gui -all &             -- Show all jobs.
          % nc gui -set SomeSetName   -- Show specified set.

          % nc gui -submit            -- Job submission dialog.
          % nc gui -limitGui 5        -- Allow you to run up to 5 "nc gui" (default 3)


          % nc gui -metrics &         -- Show the scheduler metrics.

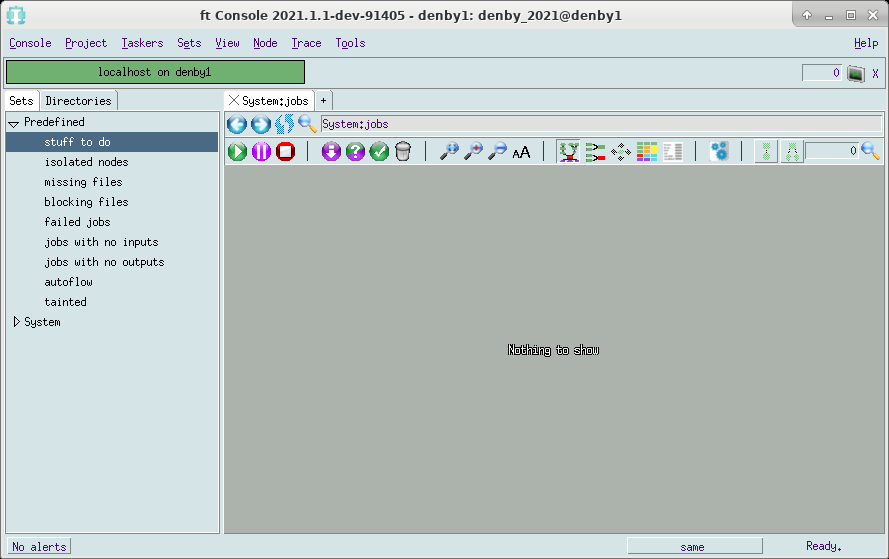

Figure 1. GUI that opens after entering nc cmd vovconsole &
