LookupTable_port
This block approximates a non-linear function using interpolation on data provided as a "1D-table".
Library
LookupTables

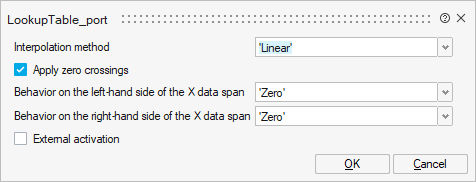

Parameters
Name | Label | Description | Data Type | Valid Values |
---|---|---|---|---|
Method | Interpolation method | Interpolation method, to be selected amongst: ZeroOrder(Floor), ZeroOrder(Ceil), ZeroOrder(Nearest), Linear, Not a Knot, Natural, Clamped. | String | 'ZeroOrder(floor)' |
EventGen | Apply zero crossings | Scalar | 0 | |
Leftside | Behavior on the left-hand side of the U data span | String | 'Zero' | |
Rightside | Behavior on the right-hand side of the U data span | String | 'Zero' | |
externalActivation | External activation | Specifies whether the block receives an external activation or inherits its activation through its regular input ports. When External Activation is selected, an additional activation port is added to the block. By default, external activation is not selected. | Number | 0 |
Ports
Name | Type | Description | IO Type | Number |
---|---|---|---|---|
y | explicit | output | 1 | |
u | explicit | input | 1 | |
U | explicit | input | 2 | |
Y | explicit | input | 3 | |
Port 5 | activation | input | externalActivation |
