LookupTableND_port
This block approximates a non-linear function using interpolation on data provided as an "n-dimensional table".
Library
LookupTables

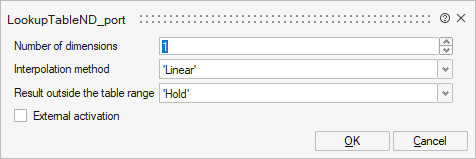

Parameters
Name | Label | Description | Data Type | Valid Values |
---|---|---|---|---|
nDims | Number of dimensions | Number of dimensions of the lookup table. One dimension corresponds to one input. | Number | |
Method | Interpolation method | String | 'Hold' | |
DoOutside | Result outside the table range | String | 'Hold' | |
externalActivation | External activation | Specifies whether the block receives an external activation or inherits its activation through its regular input ports. When External Activation is selected, an additional activation port is added to the block. By default, external activation is not selected. | Number | 0 |
Ports
Name | Type | Description | IO Type | Number |
---|---|---|---|---|
y | explicit | output | 1 | |
Port 2 | explicit | input | 2*nDims+1 | |
Port 3 | activation | input | externalActivation |
