wx gui

Show a grid view of the jobs in a specified set.

wx: Usage Message
          Show a grid view of the jobs in a specified set.
          % wx gui [OPTIONS] &
          With no options, the GUI shows all jobs of the current
          -a                  -- Show all jobs.
          -u <user>           -- Show jobs for specified user.
          -s <SETNAME>
          -set <SETNAME>
          -setname <SETNAME>  -- Show specified set.
          -timeout <TIMESPEC> -- Stop async update after this time (default 2h).
          -ss                 -- Use subserver, if available.
          -noss               -- Do not user subserver, even if available. (Default)
          -submit             -- Activate job submission dialog
          -limitGui <N>       -- Override the limit of 3 max GUI per user.
          -batch <file>       -- Execute specified file after the GUI is ready
          -metrics            -- Show scheduler metrics.
          -metricsConfig <file> -- Use specified metrics configuration file.
          -slaves             -- Show compact slaves monitor.
          -fontsize <size>    -- Specify the normal font size. Default is 10.
                                 Legal range is 3 to 36.
          -title <title>      -- Choose title of X11 window.
          % wx gui &                  -- Show all my jobs
          % wx gui -all &             -- Show all jobs.
          % wx gui -set SomeSetName   -- Show specified set.
          % wx gui -submit            -- Job submission dialog.
          % wx gui -limitGui 5        -- Allow you to run up to 5 "nc gui" (default 3)
          % wx gui -metrics &         -- Show the scheduler metrics.

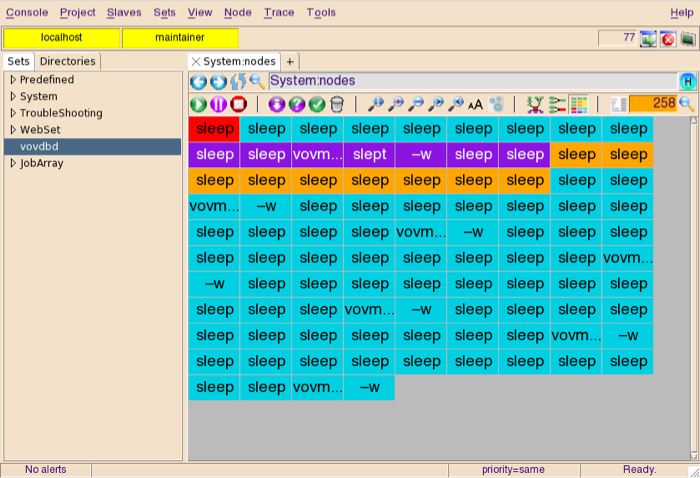

Figure 1.
% wx cmd vovconsole &

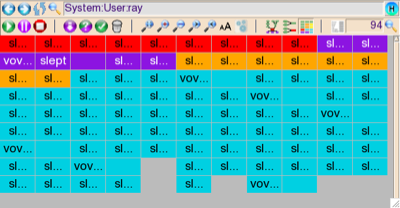

Figure 2.
